82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm

Brand Name : SMART AUTOMATION

Model Number : OEM

Certification : CE

Place of Origin : Changzhou CHINA

Supply Ability : 10000 Piece/Pieces per Month

Packaging Details : To be negotiated

MOQ : 50

Price : To be negotiated

Delivery Time : To be negotiated

Payment Terms : D/A, T/T, L/C,D/P

Warranty : 3years

Port : Shanghai

Current : customized for different power

Speed(RPM) : 5 rpm upto 3000rpm

Continuous Current(A) : customed

Usage : BOAT, Car, Electric Bicycle, FAN, Home Appliance, machine

Type : GEAR MOTOR

Torque : customed

Construction : Permanent Magnet

Commutation : Brushless

Protect Feature : Drip-proof

Efficiency : IE 1

Contact Now

82plg.90zyt series heavy duty large torque planetary geared dc motor, Helical gears High Torque upto 80Nm 100Nm 120Nm

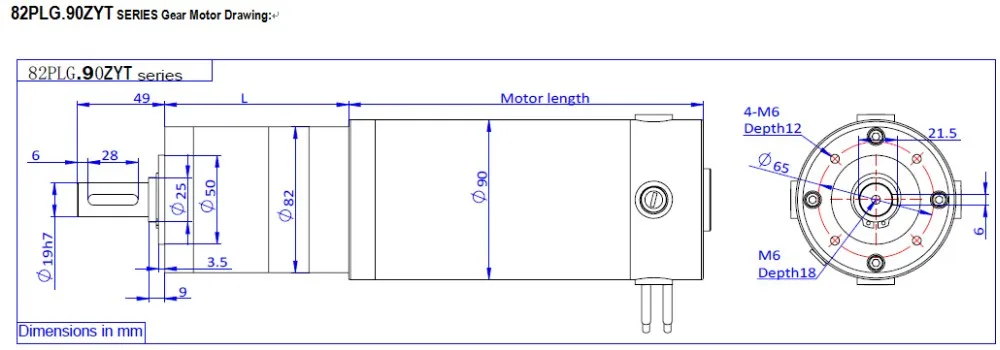

82PLG.90ZYT SERIES LARGE TORQUE PLANETARY GEAR MOTOR (with rated torque up to 120N.m)

82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm

90ZYT Series Motor Specification:

Ball bearing Hard ferrite magnet, 4- poles Protection class IP 54 Insulation class: B CE and ROHS certified

Model Rated voltage V No load speed rpm No load current A Rated speed rpm Rated torque N.m Output power W Rated current A Stall torque N.m Stall current A Motor Length mm
90ZYT01A-12V 12 3600 3.5 3000 1.2 377 41.5 7.4 240 155
90ZYT01A-24V 24 3600 2.5 3000 1.2 377 20.5 7.4 114 155
90ZYT02A-12V 12 3600 3.5 3000 1.8 565 65 12.8 438 199
90ZYT02A-24V 24 3600 2.5 3000 1.8 565 32 12.8 210 199

We provide customized voltage, winding, shaft, mounting, and lead configurations

Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder

82PN Planetary Gearbox Specification:

*Helical gears at first stage

Reduction ratio 1/3.65 1/5.36 1/6.55 1/8.63 1/13.5 1/18.9 1/24.6 1/28 1/33.9 1/44.7 1/67 1/81.1 1/91.3 1/102.9
Number of gear trains 1 1 1 1 2 2 2 2 2 2 2 3 3 3
Gearbox Length (L) (mm) 58.3 58.3 58.3 58.3 80.5 80.5 80.5 80.5 80.5 80.5 80.5 103.2 103.2 103.2
Transmission efficiency 90% 90% 90% 90% 81% 81% 81% 81% 81% 81% 81% 73% 73% 73%
Max. rated transmission torque (N.m) 20 20 20 20 60 60 60 60 60 60 60 120 120 120
Max. permissible load in short time (N.m) 40 40 40 40 120 120 120 120 120 120 120 240 240 240
Reduction ratio 1/119 1/127.7 1/145.4 1/165.6 1/191.6 1/231.6 1/301.7 1/393
Number of gear trains 3 3 3 3 3 3 3 3
Gearbox Length (L) (mm) 103.2 103.2 103.2 103.2 103.2 103.2 103.2 103.2
Transmission efficiency 73% 73% 73% 73% 73% 73% 73% 73%
Max. rated transmission torque (N.m) 120 120 120 120 120 120 120 120
Max. permissible load in short time (N.m) 240 240 240 240 240 240 240 240

82plg.90zyt Series Large Power Heavy Duty Electrical PM DC Gear Motor 24v 36v 48v 50Nm 80Nm 100Nm 120Nm
